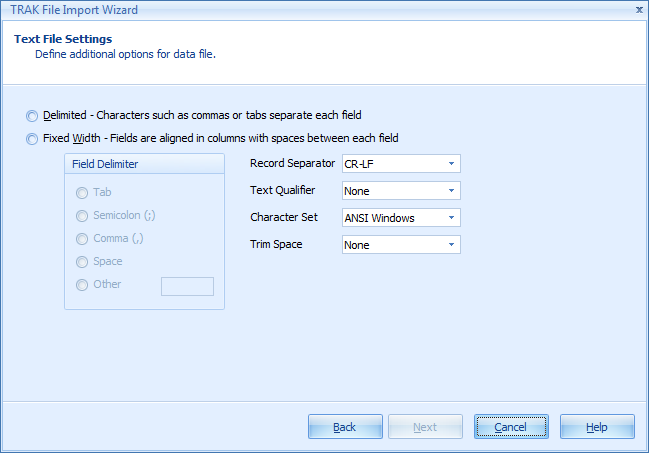

The Text File Settings page is only required for importing data from text files.
| Note: | Text files (commonly called ASCII files or CSV files) require the highest level of configuration to import data. The reason being, text files have the least internal definition of the data (e.g. how a date is formatted, what type of data is in each field, etc.). |
Delimited or Fixed Width
Text files separate their field values one of two ways: using fixed width columns or using delimiters. If delimiter (a character that separates fields, such as a comma or a tab) is selected, the type of delimiter must be selected.
Field Delimiter
Select the delimiter between the field values. Normally this would be a comma.
Record Separator
Select what defines the end of a record.
CR is a 'carriage return' and is ACSII character #13.
LF is a 'line feed' and is ASCII character #10
Text Qualifier
If text fields in the input file are qualified with quote marks, select which type of quotes are used.
| Note: | Other settings on this page will most likely be correct. Only change settings if they are incorrect. |
Character Set
Normally this will be an ANSI Windows character set. If the source file was from a file generated in a MS DOS program, choose ANSI MS DO.
Trim Spaces
Select if the text is to be trimmed (leading and/or trailing spaces).
